S144 Wind Turbine Generator
Suzlon S144 3 MW Series
With the introduction of new 3 MW Series, Suzlon has yet again redefined the benchmark with S144, one of the largest wind turbine that will target India’s relevant low wind regimes.
144m rotor diameter with a swept area of more than 16,618 sq. meters
6 pole generator, proven DFIG technology, Water - Air cooling
Work platforms, covered entry from tower top, safety guards on all edges
70m full carbon girder blade with flagship carbon fibre technology
The S144 Advantage
Suzlon introduced the new 3 MW series to unlock unviable sites and to deliver improved energy yield suitable for all wind regimes. The S144 wind turbine generator is one of the largest in India, extendable up to 3.15 MW, depending on site wind conditions, available at a hub height of 140 meters going up to 160 meters by its serial launch. At 160 meters hub height the S144 will also be India’s tallest wind turbine. Suzlon’s S144 fleet will deliver a remarkable 40-43% higher generation over Suzlon’s current model, the S120 – 2.1 MW wind turbine, showcasing its ability to optimize wind resources at higher altitudes and make low-wind sites viable.
OPERATING DATA
Wind class – IEC S
Rated power – 3.00 MW
Cut-in wind speed – 3.0m/s
Rated wind speed – 9.2m/s
Cut-out wind speed – 18m/s
ROTOR
Rotor diameter – 144m
Swept area – 16,618m2
GENERATOR
Frequency – 50Hz
Proven DFIG technology
Water – Air cooling
TOWER
Hub heights – Up to 160m
Type – Modular Hybrid
Lattice Tower
BLADE
Make – Suzlon SB70
(Carbon girder, Flatback
and metal root inserts)

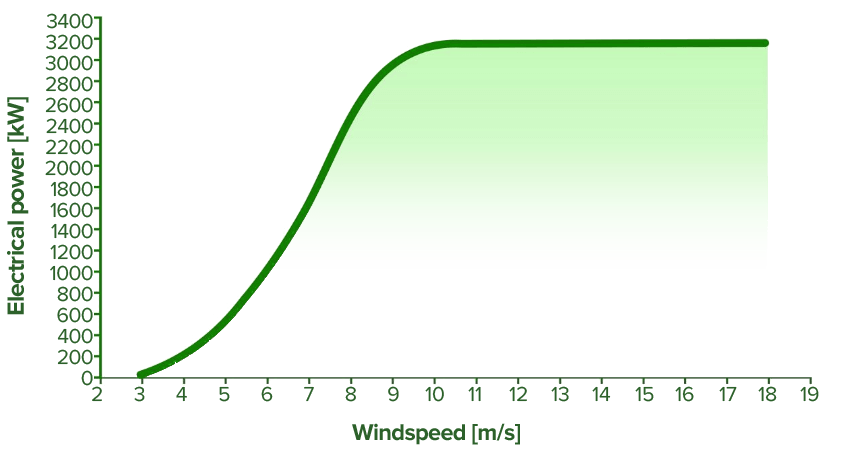

Power Curve
